當前位置:首頁 > 產品中心 > 插秧機
RICE TRANSPLANTER

插秧機

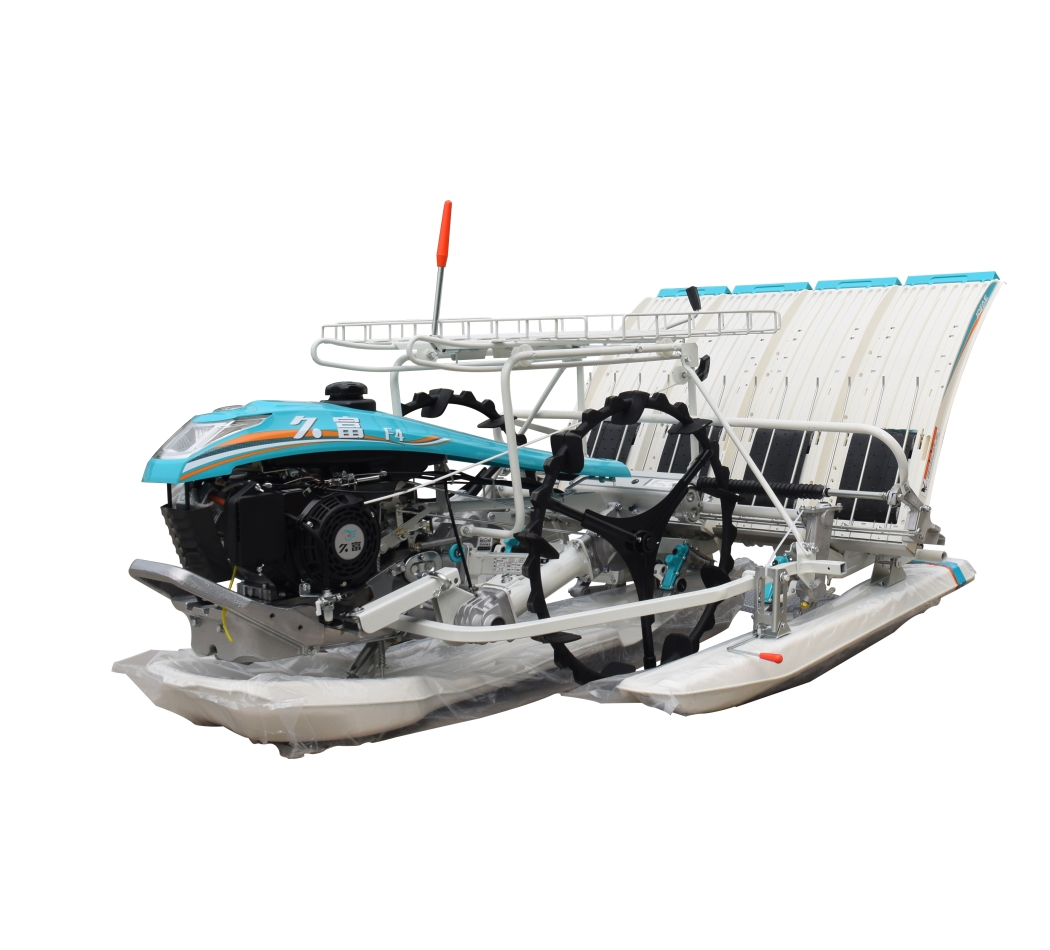

手扶式增產型擺栽兩用插秧機2ZS-4(F4)

手扶式增產型擺栽兩用插秧機2ZS-4(F4)

久富農機F4手扶式插秧機,缽苗毯苗兩用機型是農機專業合作社,農機作業大戶,種糧大戶等種植水稻的好幫手。? 在同類機型中重量輕,操作方便,可靠性佳。? 采用原廠雅馬哈汽油發動機,采用全齒輪傳動結構,動力損失小,維修方便? 標準配液壓自動平衡機構,確保即使在秧田不平整時也能保持插秧深度一致。行距輕松調整可選,適應南方和北方不同的農藝需求? 手扶水稻插秧機結構簡單,操控性好,性能可靠,

產品詳情

久富農機F4手扶式插秧機,缽苗毯苗兩用機型是農機專業合作社,農機作業大戶,種糧大戶等種植水稻的好幫手。

在同類機型中重量輕,操作方便,可靠性佳。

采用原廠雅馬哈汽油發動機,采用全齒輪傳動結構,動力損失小,維修方便

標準配液壓自動平衡機構,確保即使在秧田不平整時也能保持插秧深度一致。行距輕松調整可選,適應南方和北方不同的農藝需求


手扶水稻插秧機結構簡單,操控性好,性能可靠,配件市場成熟,采用國內同行業成熟產品的工藝設計和制造,在結合用戶意見的基礎上進行了多項優化,標準配置國際名牌--雅馬哈發動機

Jofae F4 hand-held transplanter, pot seedling / blanket seedling dual-use model are good helpers for agricultural machinery professional cooperatives, large agricultural machinery operators, grain growers and other rice planting households. It is light in weight, easy to operate and reliable in similar models. The original Yamaha gasoline engine is adopted, and the full gear transmission structure is adopted. The power loss is small, and the maintenance is convenient. The standard hydraulic automatic balancing mechanism ensures that the planting depth is consistent even when the rice field is uneven. The walking rice transplanter can be easily adjusted and selected to adapt to different agricultural needs in the south and north. The walking rice transplanter has simple structure, good controllability and reliable performance.


“久富”牌插秧機特點:

1、 一機兩用,即能插缽苗也能插毯苗。

one machine can be used for two purposes, which can be used to insert both potted seedlings and carpet seedlings.


2、 結構合理。插秧不傷缽體,不緩苗,不補苗,分蘗多,根系發達,抗倒伏。

The structure is reasonable. Transplanting does not damage the pot body, does not slow seedlings, does not replenish seedlings, has many tillers, developed roots, and is resistant to lodging.


3、 獨特的缽苗輸秧控制系統,使插秧時取苗準確,不傷缽體,這是其它同類插秧機所沒有的。

The unique control system for transplanting rice seedlings by pot ensures that the seedlings can be taken accurately without damaging the pot seedling, which is not found in other similar transplanters.


4、 缽苗插秧,成熟度好,增產明顯,與一般平盤插秧相比可增產8—15%,特別適合北方寒冷地區和南方冬水田的插秧作業。

Pot seedling transplanting has good maturity and obvious yield increase. Compared with ordinary flat plate transplanting, it can increase yield by 8-15%, which is especially suitable for transplanting in winter paddy fields in northern cold regions and southern China.


5、 種糧大戶,農機作業大戶,農機專業合作社的可靠幫手。

Large grain growers, large agricultural machinery operators‘ reliable helpers of agricultural machinery cooperatives.


F4水稻插秧機產品技術規格確認表

                                                                                                    F4 Rice transplanter technical specification confirmation form

序 號(No.

技 術 規 格(specification

設 計 值(Design value

1

規 格 型 號(model

2ZS-4(F4)

2

結 構 型 式(structure

手扶步進式(walking hand-held

3

配 套 發 動 機(engine

生 產 企 業(manufacturing

雅馬哈動力機械有限公司(YAMAHA

牌 號 型 號(type

MZ175-J-1

結 構 型 式(Structure

風冷4沖程OHV發動機

                              (Fan-cooled, 4 stoke, OHV engine

標 定 功 率,kw

2.6

標 定 轉 速

                      (Rated rotation speed),r/min

3000

燃 油 種 類(Fuel type

93#無鉛汽油及以上

                              (93# unleaded gasoline or better

4

外 形 尺 寸(長 * 寬 * 高)Outline (L * w * H),mm

2140*1630*910

5

結 構 質 量(Weight),kg

162

6

工 作 行 數(Quantity of transplanting lines),行

4

7

行 距(Clearance of lines),mm

300

8

株 距(Clearance of rows),mm

140,160,180,210,240,280

9

插 秧 深 度(Transplanting depth),mm

7~37

10

作 業 速 度(Working speed),km/h

1.22~2.77

11

作 業 小 時 生 產 率(Working efficiency),hm2/h

0.091~0.21

12

單 位 作 業 量 燃 油 消  耗 量(Fuel consumption per hectare),kg/hm2

2.0~4.7

13

行 走 輪

                (walking wheels

前 輪front wheels

結 構 型 式

              (type of structure

粗輪轂橡膠輪胎(rubber wrapped wheels

直 徑(diameter),mm

660

后 輪rear wheels

結 構 型 式(type of structure

粗輪轂橡膠輪胎rubber wrapped wheels

直 徑(diameter),mm

660

14

插 植 機 結 構 型 式(type of transplanting structure

曲柄連桿機構(crank linkage
